Ray bi 3 tầng Giảm chấn /Soft Closing Ball bearing Slides

Danh mục sản phẩm

Ray bi 3 tầng Giảm chấn /Soft Closing Ball bearing Slides

Mã sản phẩm:
0
Giá:
Liên hệ
Lượt xem:
1288

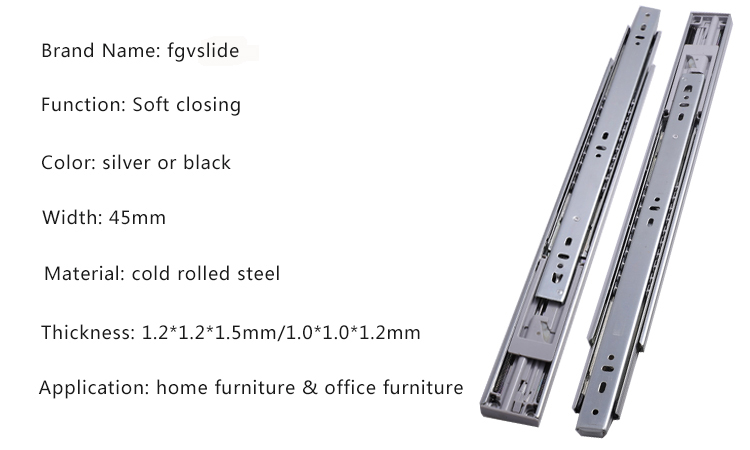

Usage: Kitchen Cabinet
Type: Slide

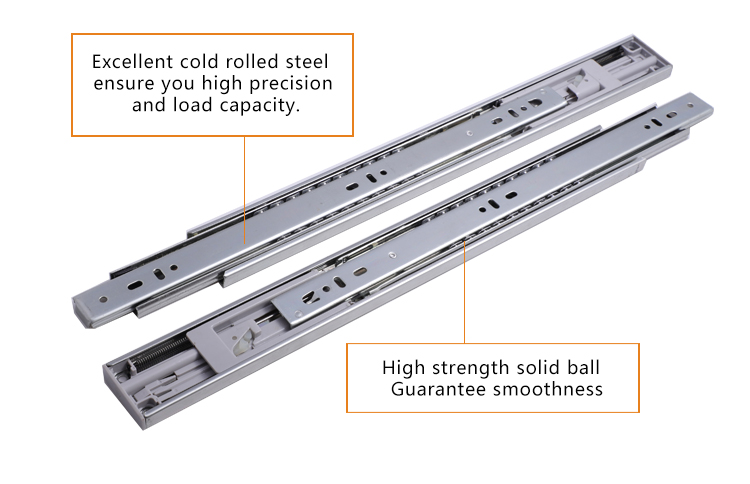

Material: Cold Rolled Steel, Work hardened cold rolled steel
Product Mount Method: Side Mounting

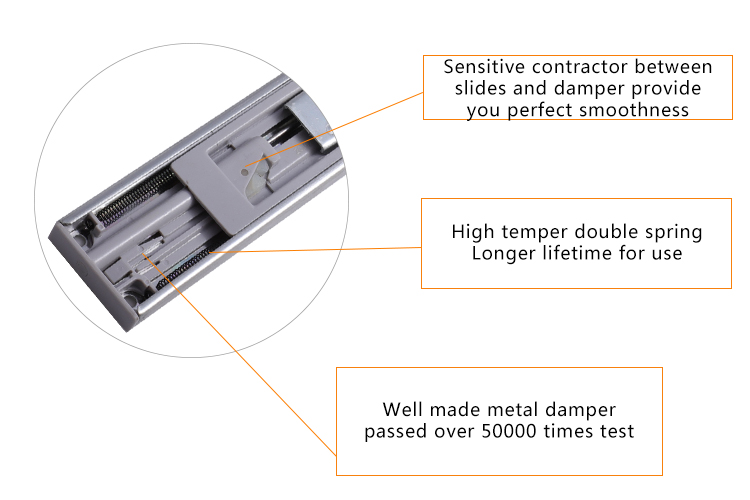

Function: soft close
Characteristers: Inner frame detachable assembly function,adopt 32mm system hole.
Load capacity: 35kgs
Specification: 14 inch-24inch(350mm-600mm)
Width: 45mm
Gap: Gap of every side is 12.7+_0.2mmmm
Finish: Electro-zinc plated with clear,yellow or black chromate.
Thickness of material(O/M/I): 1.2*1.2*1.5mm

Thông tin sản phẩm
Bình luận

ITEM NAME	telescopic drawer rails slide channel for kitchen cabinet	ITEM NO.	DY4507SN-06
HOLE PATTERN	Standard	FINISH	Zinc Plated
LOAD RATING	35 KGs / 45 KGs	LENGTH	10 to 24 inches
BALLS	2 Balls / 3 Balls	EDGE	Oval / Square
INSTALLATION	side mount	MOQ	510 pairs
EXTENSION	full extension	TEST	pass 48hrs salt spray test
